1200-1400
ANSA 1200 - 1400 bottle unscramblers
Suitable for mid sized containers from low to medium speed applications and for odd shaped bottles. For these models the integrated secondary orienter unit is available
stainless steel and anodised aluminium construction
compact model - integrated hopper and elevator
no tools, quick and easy change over
soft touch handling (The containers are moving at the same surface speed as the parts they are in contact with)
speed set to production line
all plastic parts : HDPE
photoelectric level control in the bowl
backlog ( jam) photo eye on the output conveyor
Low level sensor in hopper

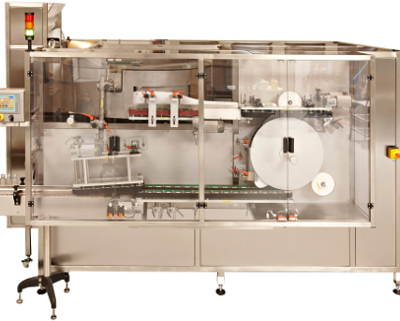

ANSA 1400 bottle unscrambler machine

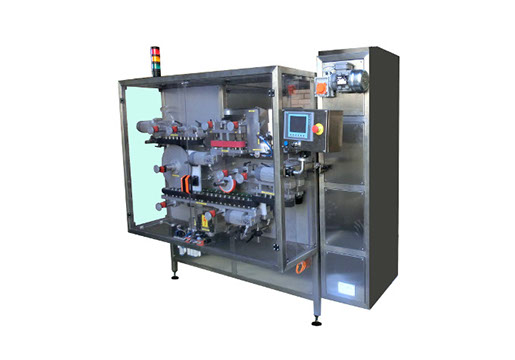

ANSA 1200 bottle unscrambler machine

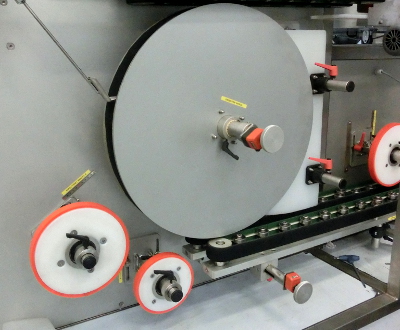

ANSA 1200 orienter wheel

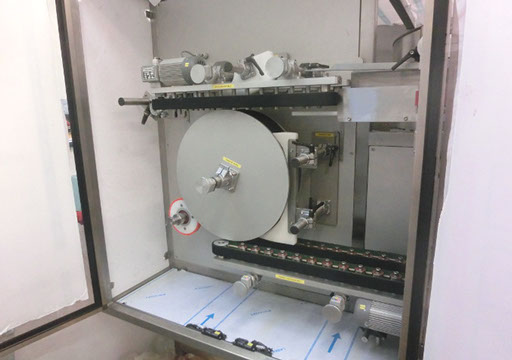

ANSA 1200 bottle unscrambler machine

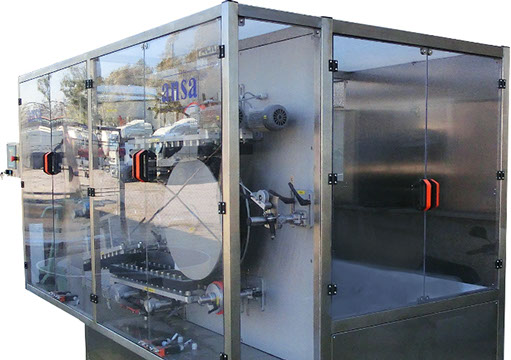

ANSA 1400 bottle unscrambler machine

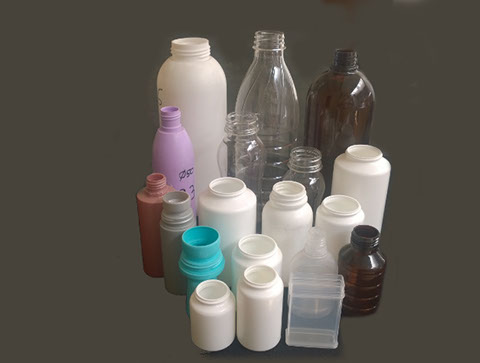

Typical containers used for the 1200 and 1400 models
maximum output speed: 200 bpm
maximum bottle diameter or width: 120 mm
maximum bottle height: 230 mm
Suitable for pharma, cosmetical, food and chemical industries
