ANSA 800 - 1000 bottle unscramblers
800-1000
ANSA 800 model is suitable for smaller container at medium speed, the 1000 model is available in high speed version and also suitable for 1l bottles at low speed
stainless steel and anodised aluminium construction
compact model - integrated hopper and elevator
no tools, quick and easy change over
soft touch handling (The containers are moving at the same surface speed as the parts they are in contact with)
speed set to production line
all plastic parts : HDPE
photoelectric level control in the bowl
backlog ( jam) photo eye on the output conveyor
Low level sensor in hopper
Integral scanners monitoring the flow of containers

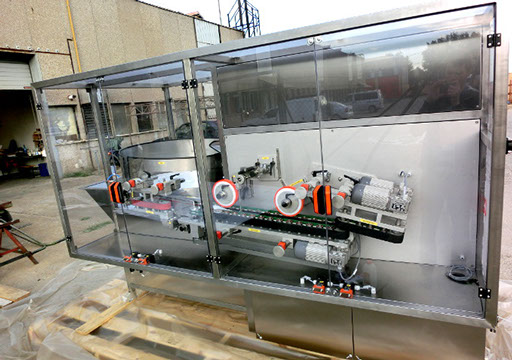

ANSA 800 bottle unscrambler machine
ANSA 800 with integrated air cleaner unit
ANSA 1000 with integrated air cleaner unit

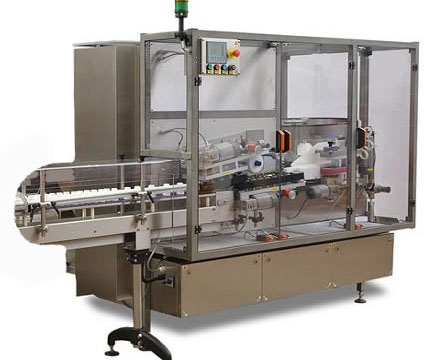

ANSA 1000 bottle unscrambler machine
ANSA 1000 bottle unscrambler machine
maximum output speed: 300 bpm
maximum bottle diameter or width: 50 mm
maximum bottle height: 80 mm
Suitable for pharma, cosmetical, food and chemical industries
