1800-3000
ANSA 1800 - 3000 bottle unscramblers
The models above 1800 have separate hopper and elevator unit. These models are used for big containers or for very high speed applications.
stainless steel and anodized aluminum construction
no tools, quick and easy change over
soft touch handling (The containers are moving at the same surface speed as the parts they are in contact with)
speed set to production line
all plastic parts : HDPE
photoelectric level control in the bowl
backlog ( jam) photo eye on the output conveyor
Low level sensor in hopper
Integral scanners monitoring the flow of containers
high speed package available

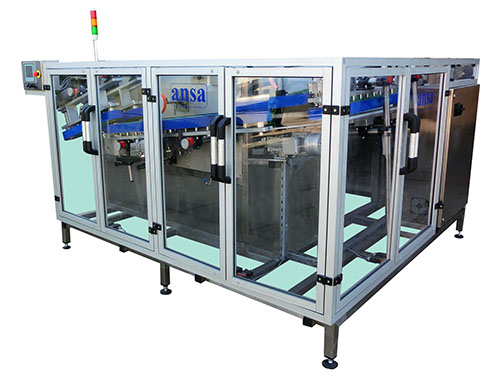

ANSA 1800 bottle unscrambler

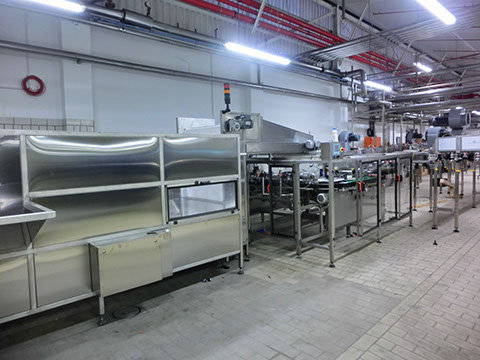

ANSA 3000 HS with 7m3 hopper unit

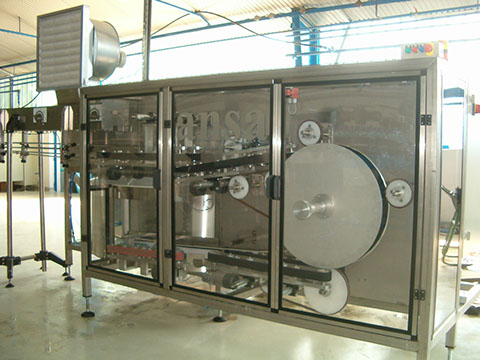

ANSA 2000 unscrambler for PET bottle line. Discharging onto airveyor

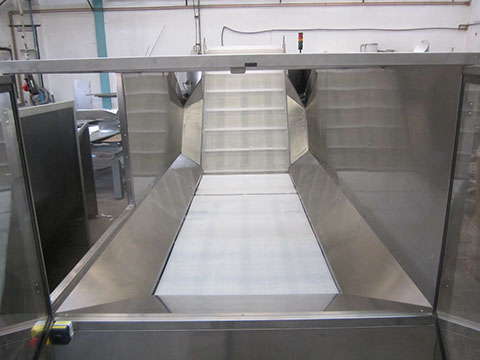

7m3 hopper unit

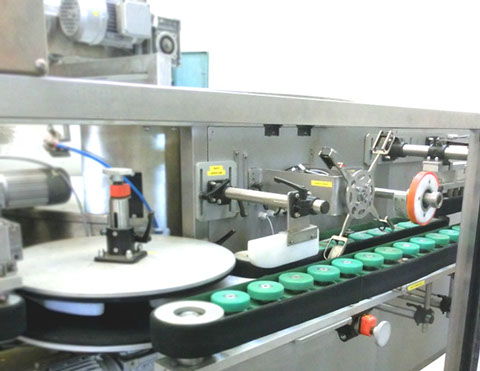

The revolutionary servo hook, included in the "high speed package"

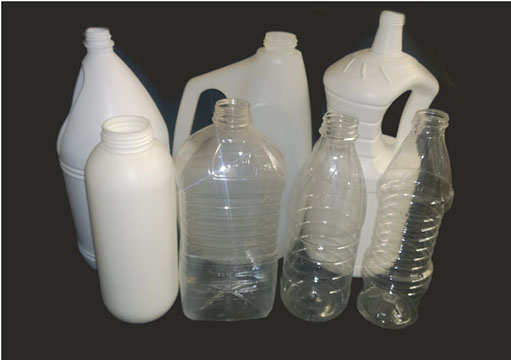

Typical containers used for the ANSA 1800, 2000 and 3000 models
maximum output speed: 500 bpm
maximum bottle diameter or width: 300 mm
maximum bottle height: 400 mm
Suitable for pharma, cosmetical, food and chemical industries
